Gantry Crane (Ship building)
Product-ID:C129Demo videoContact Supplier
1. Application range of Gantry Crane (Ship building)

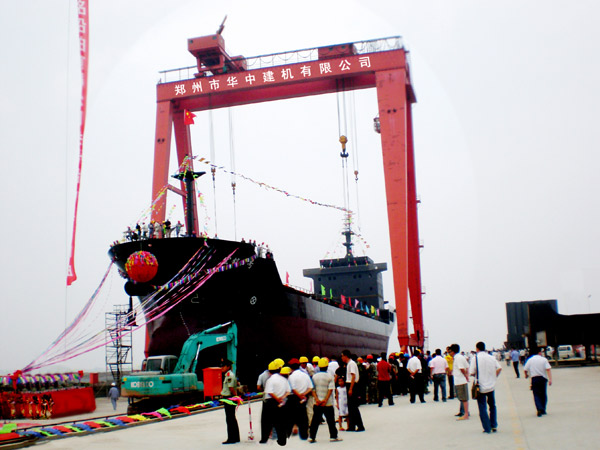

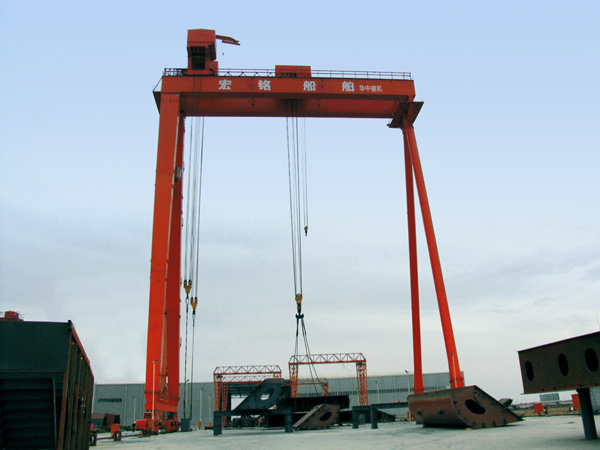

The gantry crane for ship-building is box-girder structure welded by steel plate and lifting height is 50m. It consists of a main trolley and two auxiliary trolleys which can make the objects overturning come true in the lifting process. Also a 5 Ton lifting appliance special for maintenance is equipped. This gantry crane for ship-building can be used in manufacturing 50,000 tonnages ships.
2. Main features and advantages of Gantry Crane (Ship building)
● Box girder, high strength.
● Both girder ends with cantilever, spacious working place.
● High work level, high speed and high efficiency.
3. Main technical parameters of Gantry Crane (Ship building)
|Lifting capacity(m)||120 (≥11)||600 (≥11)|
|Lifting height above rail(m)||50||80|
|Lifting height below rail(m)||6||12|
|Carne moving speed with full load(m/min)||0-30||0-35|
|Carne moving speed without load(m/min)||0-45||0-45|
|Upper trolley lifting capacity(t)||2×60||2×300|
|Upper trolley lifting speed(m/min)||0-5||0-3|
|Upper trolley moving speed with full load(m/min)||0-30||0-30|
|Upper trolley moving speed without load(m/jmin)||0-45||0-45|
|Down trolley lifting capacity (t)||120/20||4000/20|
|Down trolley main hook lifting speed(m/min)||0-5||0-3|
|Down trolley auxiliary hook lifting speed(m/min)||0-20||0-20|
|Down trolley moving speed with full load(m/min)||0-30||0-30|
|Down trolley moving speed without load(m/min)||0-45||0-45|
|Power supply||AC 10KV 50HZ||AC 10KV 50HZ|
