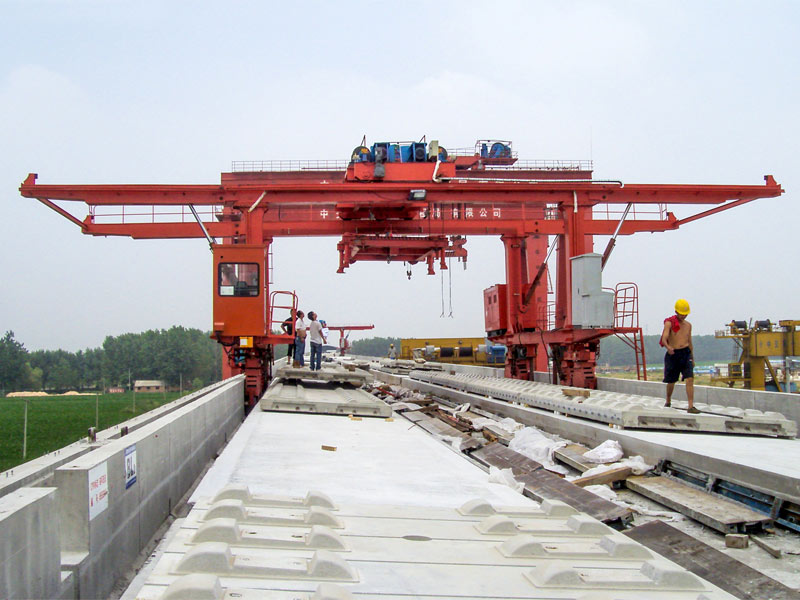

1. Application range of Tyre Gantry Crane

It is widey used for paving concrete sleeper for high speed railway and has the capacity to travel automatically without tracks .

2. Main technical parameters of Tyre Gantry Crane

Product Model LTD
Rated lifting weight 16 t
The maximum operating speed of no-load 0-40m/min
The maximum operating speed heavy load 0-20m/min
Full load maximum crawl ability ±2%
Tuming radius 5500m
The shape size 8.94×6.5×7.985
The whole machine weight 21.5t
The biggest single 4.5t
The test load 15t
