1. Application range of Launching Gantry

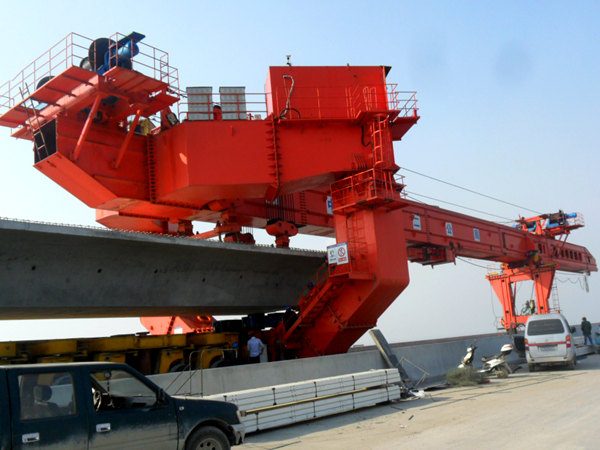

Launching gantry is used to install precast box girder for high speed railway. With full span installation method, the box type single girder launching gantry greatly improves the construction speed and erection precision.
2. Main features and advantages of Launching Gantry
After researching and analyzing current highway bridge construction machine at home and abroad, combining with our successful experience, we develop and produce the new Launching Gantry according to practical situation. The main features are following:
● First-made honeycomb girder in China with light self weight, heavy load and strong wind resistance etc.
● The launching crane conforms to the features of construction of present bridge which form is novel and structure is reasonable.
● The main girder and main connecting structures adopt the mature pin connecting mechanism, it is very firm and reliable, and the assembly and disassembly are rapid and convenient.
● It doesn’t need to pave the longitudinal rails. It not only can reduce the stress of bridge, but also can save the cost of construction. It has a wide adaptability for the box girder.
● In order to make the bridge girder launcher can adapt the longitudinal slope and transverse slope, the machine adopts legs which can move forward by it. And the force which the bridge bears should be reasonable and safe;
● Front and middle legs can be adjusted randomly and core plate with adjustable angle which can adapt the erection of curved bridge and Slope Bridge. According to angle of Slope Bridge, the user can adjust the front and middle legs when Slope Bridge is erected. Therefore, it can be used for 45°and less than 45° any angle slope bridge.
● Transverse trolley is added to the lifting trolley, the whole machine traverses with boundary beam which resolve the problem of installation of boundary beam.
3. Main technical parameters of Launching Gantry
|Rated lifting capacity||500t||900t|
|Max dimension for installed girder||30m×10.6m×1.8m||32m、24m double lines equal span and shift span box girder|
|Girder lifting method||4-points lifting, 3-points balancing||4-points lifting, 3-points balancing|
|Beam launcher moving speed||0-3m/min||0-3m/min|
|Beam launching moving way||walking by itself||walking by itself|
|Lifting trolley longitudinal moving speed||0-3m/min(heavy load),0-6m/min( empty load)||0-3m/min(heavy load),0-5m/min( empty load)|
|Lifting trolley lifting speed||0-0.5m/min(heavy load),0-1m/min( empty load)||0-0.5m/min(heavy load),0-1m/min( empty load)|
|Max lifting height of lifting trolley||6m||7m|
|Girder lateral fine adjustment distance||±200mm||±215mm|
|Girder fine adjustment speed||0-1m/min||0-1m/min|
|Min curved radius||1500m||Rmin≥2500m|
|Applicable gradient||longitudinal gradient 30%, lateral gradient 40%||longitudinal gradient 20‰, lateral gradient 4%|
|Control mode||mechanic-electric-hydraulic integration system||mechanic-electric-hydraulic integration system|
