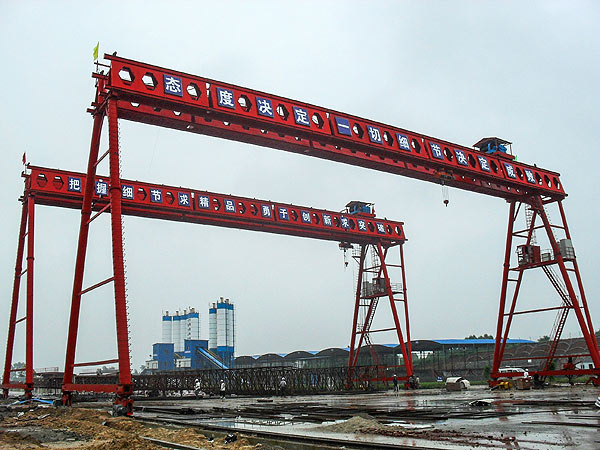

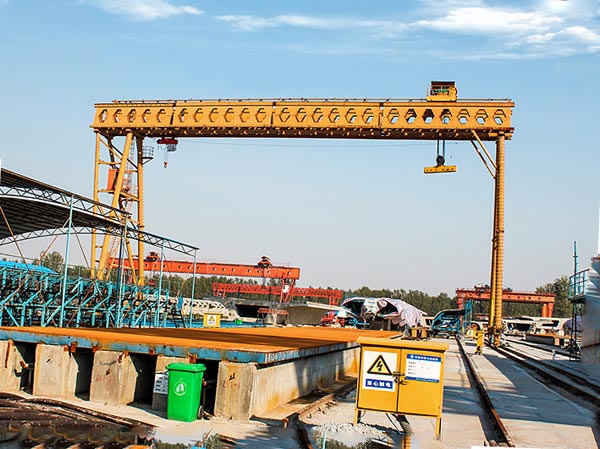

1. Application range of Honeycomb beam Gantry Crane

The honeycomb beam gantry crane is original designed by our company. The main girder structure is an isosceles triangle welded by steel plate and channel steel. The holes making on the surface of the main girder can largely reduce the wind force. For the same type of the gantry crane, the total weight of the honeycomb beam gantry crane is between box-girder and truss-girder. The high rigidity and short installation period make this product applicable to workshop, depot and highway projects to lift freight.

2. Main features and advantages of Honeycomb beam Gantry Crane

The main structure includes single-beam and double-beam. We can adjust the technical parameters to meet different clients’ requirements.
■ Advantages
   Honeycomb-girder (patented product) is first-made by Huazhong which enjoys a good fame in industry inside and outside.
   Light self-weight, large load, high wind-resistance and high rigidity, low deflection, so it is quite safe.
   Reliable and unique pin connection, short-time installation and Flexible legs, easy to transfer to another site.
   Frequency-converter can be added to meet customers’ need. Imported and high-quality electronic components also ensure the safety of hand operation.
■ About honeycomb girder
   Unique and new structure Triangle end face with honeycomb hole in two sides inclined plate, and Connecting pin for junction.
   convenient to use and install.
   small windage area, high stiffness and transverse module, large bearing capacity.

3. Main technical parameters of Honeycomb beam Gantry Crane

Product Model MGhz20 MGhz30 MGhz60 MGhz80 MGhz90 MEhz50+50 MEhz80+80
Lifting Capacity (t) 20 30 60 80 90 50+50 80+80
Net Height(m) 7 7 7 7 7 12 40
Span(m) 18 18 18 18 18 24 20
Moving Speed of Crane(m/min) 8 8 8 8 8 10 20
Moving speed of Trolley(m/min) 6 6 6 6 6 8 8
Lifting Speed of Trolley(m/min) 1 1 1 1 1 1 1
Matched Power (kw) 16 21 55 60 60 60 80
