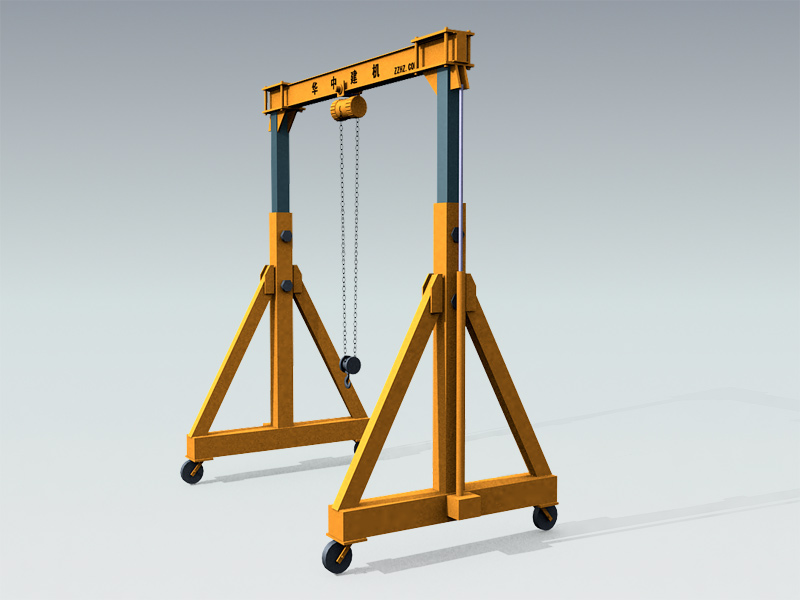

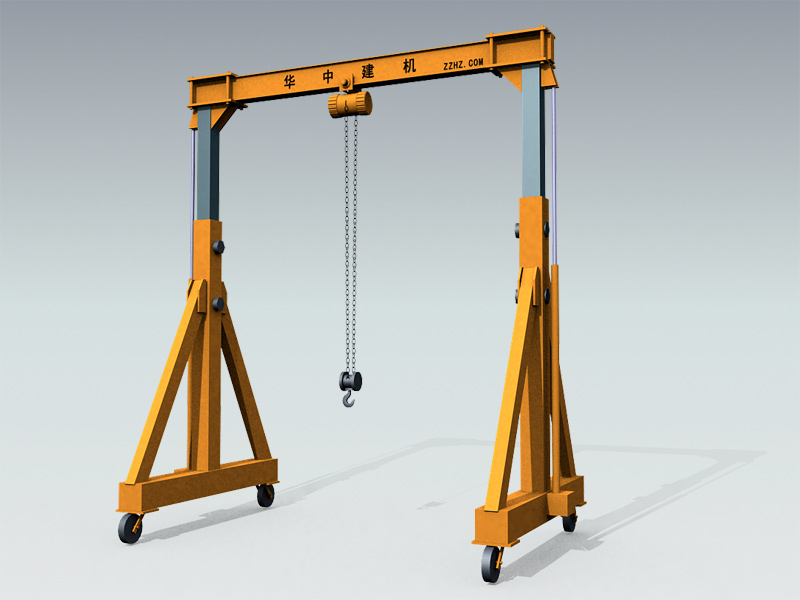

LHD Wheel Type Electric Hoist Crane
1. Application range of LHD Wheel Type Electric Hoist Crane
LHD Wheel Type electric hoist crane is the small hoisting equipment which is used in the factory workshop and cargo terminal. The lifting mechanism adopts electric hoist or electric chain. The crane with the lifted goods moves by manual or electric way. By equipping with the oil cylinder, the lifting height is changeable.
2. Main technical parameters of LHD Wheel Type Electric Hoist Crane
| Product Model | LHD3.5t | LHD5t | LHD7t |
|---|---|---|---|
| Lifting Capacity (t) | 3.5 | 5 | 7 |
| Span(m) | 3.5 | 8 | 8 |
| Lifting Height(m) | 2.7-4.5 | 3.5-4.5 | 5 |
| Electric Hoist (t) | 3.5 | 5 | 7 |
| Lifting Speed (m/min) | 5.8 | 7 | 8 |
| Traveling Speed (m/min) | manual | 20 | 20 |
| Total Power (kw) | 3 | 8.5 | 11.3 |
| Self Weight (t) | 1.2 | 5 | 6 |
