7. Main mechanical manufacturing technology of Upstroke Movable Support System

Firstly the workmanship department evaluates the drawing.
Draw up the operation instruction then make the judgment.
According to the drawing, workmanship technology, manufacturing skill and assembly ability to further perfect the dimensions of the machine and meet kinds of requirements. Also do the detection for the mechanical parts.
Prepare the clamping apparatus according to the drawing.
Strictly control the quality in the process of production. 5.6,According to kinds of standards, strengthen the management and control in every part and production process.

8. The quality control in Upstroke Movable Support System manufacturing process

Technology file drawing and project are handed to production department which assorts with related department and quality department to process, manufacture, control, check and accept of product.
The workshops do the following work according to drawing:
blanking splicing(technology and requirements of blanking splicing)
assembling welding(welding procedure card, welding technology qualification and welding record)
mechanical manufacture(mechanical manufacturing card)
finishing time of manufacture and patrolling card
Assembly(assembly technology)
checking descriptive chart(controlling the geometry size and key part).

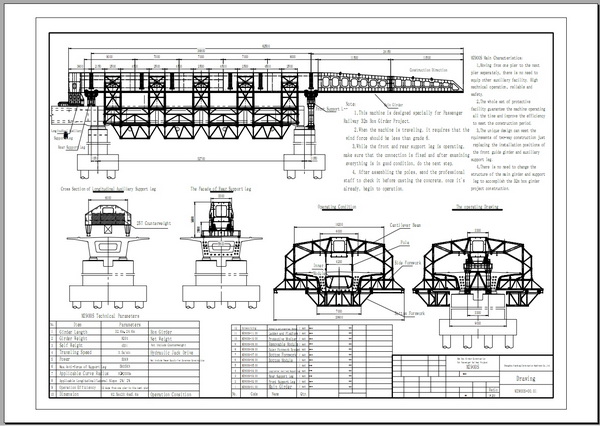

9. The drawing of Upstroke Movable Support System

Click to download the drawing of Upstroke Movable Support System
