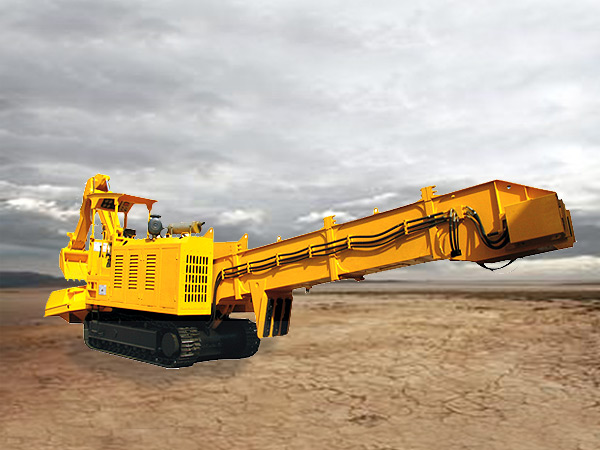

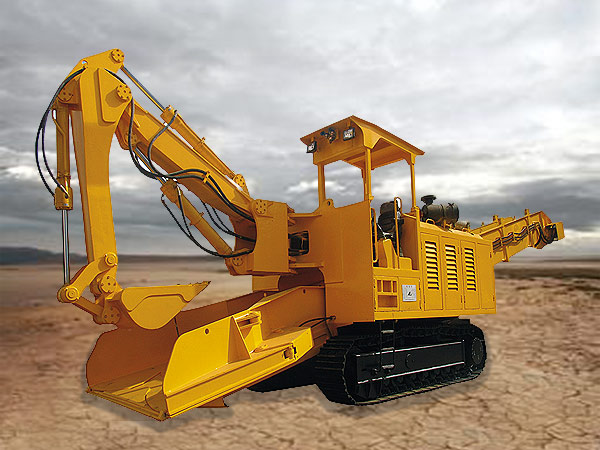

Application range of Cinder Scraper

WZ series Backhoe Loader of ZZHZ is the slag-processing equipment which is developed, researched and manufactured by absorbing the domestic -overseas advanced technology. It applies to the highway, hydro-electricity and tunnel construction projects. ZZHZ owns the exclusive Independent Intellectual Property Rights and it's a patent product. The control mode is electro-hydraulic and the dynamic is diesel-electric dual system. The backhoe loader is of construction equipment with extremely high comfort and beneficial results.

Main technical parameters of Cinder Scraper

Product Model WZ160 WZ200 WZ500
Load capacity(m3/h) ≤160 ≤200 ≤500
Digging height(mm) ≥5000 ≥6000 ≥6700
Digging width(mm) ≥6700 ≥7500 ≥9600
Digging depth(mm) ≥500 ≥600 ≥1000
Digging distance(mm) ≥2000 ≥2400 ≥2600
Discharge height(mm) ≥3000 ≥3850 ≥3920
Wheelbase(mm) 2900±50 3100±50 3430±50
Applicable climbing gradient(°) ≤12 ≤12 ≤12
Scraper chain speed(m/s) 0.4-0.7 0.4-0.7 0.4-0.7
Traveling speed(Km/h) 2-2.5 2.4-4 2-4
Ground clearance(mm) 300 300 300
Ground pressure(Kpa) ≤76 ≤76 ≤76
The rated pressure of hydraulic system(Mpa) 22 23 24
Self weight(t) ≤27 ≤28 ≤37
