Bridge Girder Launcher Integrating Carrying and Erecting
1. Application range of Bridge Girder Launcher Integrating Carrying and Erecting

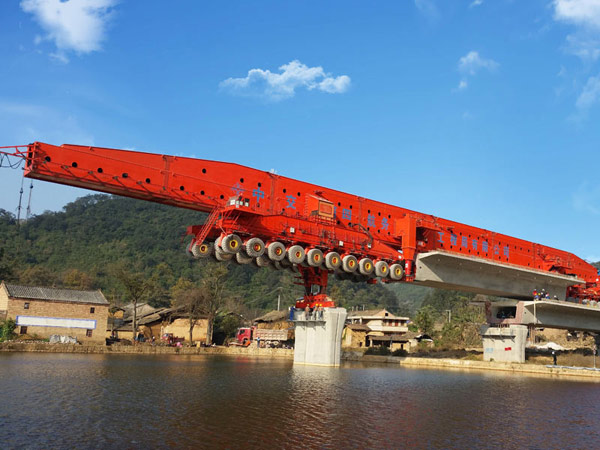

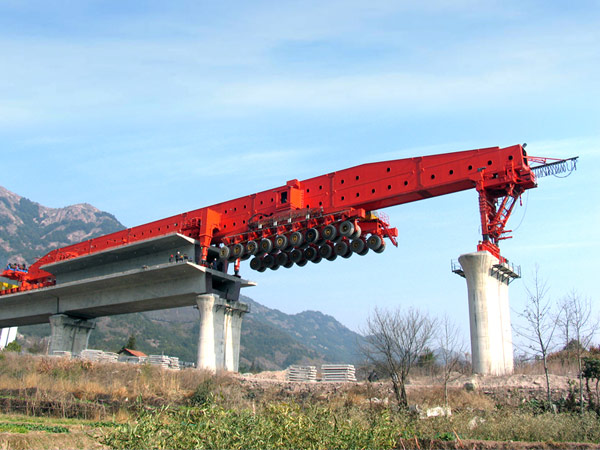

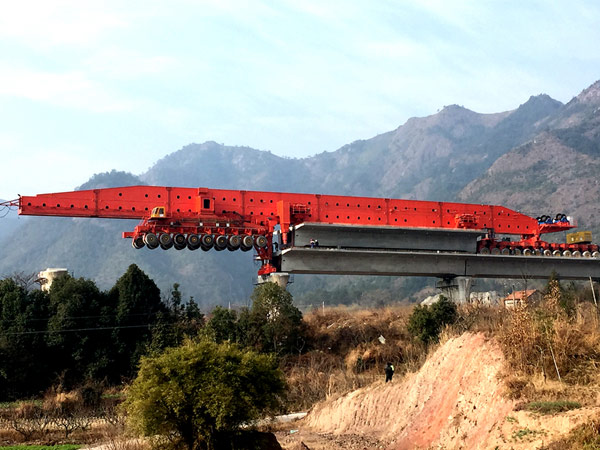

HZQDY900 bridge girder launcher integrating carrying and erecting is a kind of device used for the lifting, transporting and erecting 900t box girder for hing-speed railway and passenger dedicated line. The machine can pass the tunnel of two lines with the whole concrete box girder 20m, 24m and 32m.There are lots of methods for it to erect girder in the entrance of the tunnel, inside and outside the tunnel. It can lift and transport the box girder to move and erect girder on the construction road, road base and the well-erected box girder and it will not cause any damage to the above facilities. It can erect bridge pier in the front or back of the girder prefabricating field without the problem of field changing.
2. Main features and advantages of Bridge Girder Launcher Integrating Carrying and Erecting
1.The machine uses the design of integrating girder lifting, transporting with erecting.
2. Compared with the traditional mobile bridge building crane, it can erect girder successfully without the help of the lower guide girder and any other auxiliary equipment. It is self-light, owning simple structure. The operating procedures of it is simple with high safety.
3. It can lift and transport the whole box girder of two lines passing through the tunnels of 250km/h and 350km/h. It also can erect girder in the entrance of the tunnel and inside the tunnel.
4.It is easy for the machine to erect the first and the last girder before the machine entering the tunnel.
5. The span of the whole machine can be changed easily with strong ability to apply the work environment.
6. Any part of the machine does not need to be fixed with anchors in the process of girder erecting, thus reducing the erecting steps and improving safety.
3. Main technical parameters of Bridge Girder Launcher Integrating Carrying and Erecting
| Model | HZQDY900 bridge girder launcher integrating carrying and erecting |
|---|---|
| Weight： | about 640t |
| Dimension： | 98.4*9.1*7m |
| Rated lifting capacity： | 900t(without the weight of the hanger) |
| Applicable girder shape | box girder of 20m, 24m and 32m for high-speed railway and passenger dedicated line |
| Climbing ability: | 3％ |
| Min turning radius: | 155m |
| Min curve radius: | 2000m |
| Max applicable longitudinal slope: | 3％ |
| Applicable height: | ≤2000m |
| Work temperature: | -20°C/+50°C |
| Max wind force in work: | level 6 |
| Wind force out of work: | level 11 |
| Use Level： | U0 |
| Load state： | Q3 |
| Working class of the whole machine： | A3 |
| Working class of the mechanism： | M4 |
4. The video of Bridge Girder Launcher Integrating Carrying and Erecting

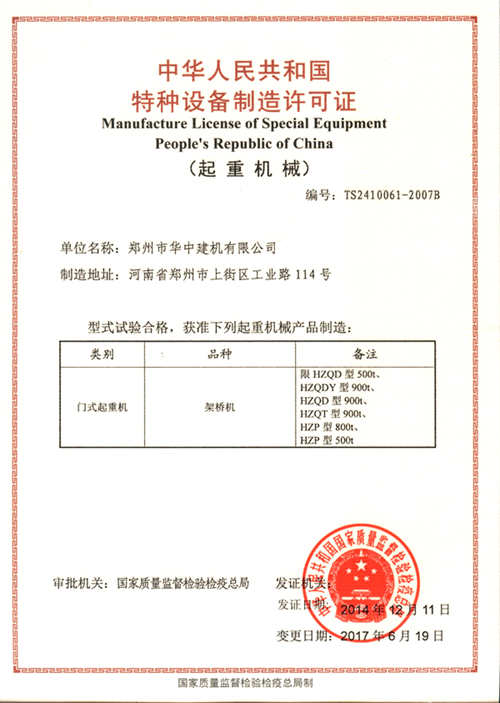

5. type test report of Bridge Girder Launcher Integrating Carrying and Erecting
Bridge Girder Launcher Integrating Carrying and Erecting has been tested by China legal quality test department, and it is qualified.
