Bridge Girder Erection Machine for High Speed Railway
7. Main mechanical manufacturing technology of Bridge Girder Erection Machine for High Speed Railway
There are many mechanical manufacturing (machinery-building) technologies; the rules of management are following:
● Firstly, the technology department reviews the drawing from manufacturability.
● Drawing up the technology guide book and making procedure qualification.
● Making welding procedure card, mechanical manufacturing card, assembly process, camber drawing of box girder according to drawing , rules and criterion ; emphasizing the size of welding angle, geometry size and requirements of assembly etc.
● Designing the assembly technology clamp according to the requirements of drawing.
● Making the finishing time of manufacture and patrolling card according to the requirements of drawing; controlling the quality of manufacture strictly.
8. The quality control in Bridge Girder Erection Machine for High Speed Railway manufacturing process
Technology file drawing and project are handed to production department which assorts with related department and quality department to process, manufacture, control, check and accept of product.
The workshops do the following work according to drawing:
● blanking splicing（technology and requirements of blanking splicing）
● assembling welding（welding procedure card, welding technology qualification and welding record）
● mechanical manufacture（mechanical manufacturing card）
● finishing time of manufacture and patrolling card
● Assembly（assembly technology）
● checking descriptive chart（controlling the geometry size and key part）.
9. The drawing of Bridge Girder Erection Machine for High Speed Railway

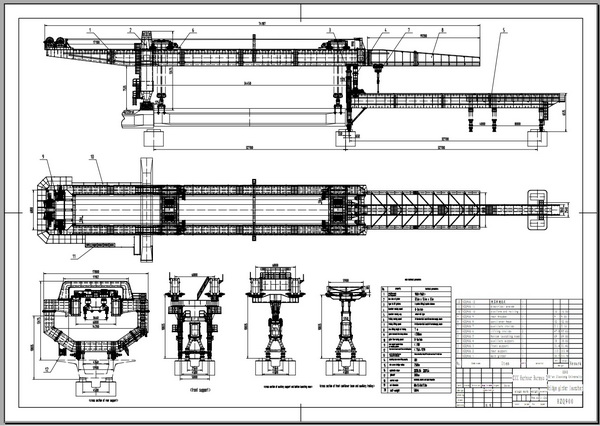

Click to download the drawing of Bridge Girder Erection Machine for High Speed Railway
